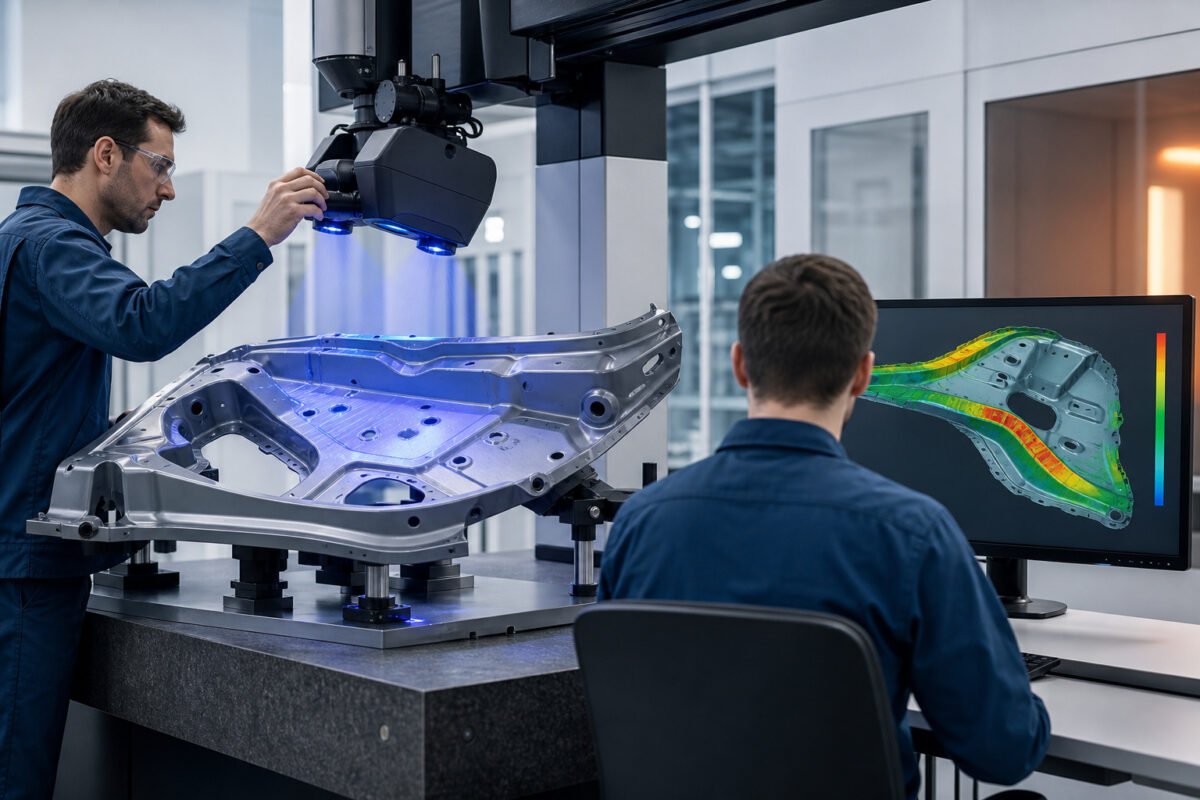

Optical scanners, structured-light systems and laser trackers now deliver point clouds with densities that would have seemed absurd a decade ago. I have watched shops buy these machines believing the purchase itself settles their measurement problems. It does not. A scanner captures geometry; it has no opinion about which surfaces matter, how the part sits in the vehicle assembly, or what tolerance applies to which feature.
All of that comes from the alignment strategy and the evaluation rules you impose afterwards. Across two decades of automotive and aerospace quality work, the distinction I insist teams understand is this: the point cloud is raw data, the alignment is an interpretive act, and the colour map is a rendering of one interpretation among several.
Change the alignment and the same point cloud can go from mostly green to mostly red without a single point moving. That is not a measurement problem. It is a datum problem, and it belongs entirely to the engineer who defined the evaluation.
Alignment strategy precedes everything
Every colour map begins with a best-fit or datum-based alignment, and the choice between them is where most scanning reports go wrong. A best-fit, or least-squares, alignment distributes deviation across the whole part. It looks flattering. Out-of-tolerance flanges get averaged into tolerance because the algorithm treats every captured surface with equal weight.
For a freeform casting with no datum scheme, best-fit is legitimate. For a bracket with a primary datum face and two locating holes, it is a way of hiding the truth from yourself. Datum-based alignment — three-two-one, or RPS alignment in the German tradition — locks the part in the measurement exactly as it locks in the assembly. The primary datum plane constrains three degrees of freedom, the secondary two, the tertiary one.
Aligned this way, deviations read as they will behave at the customer. A hole that shows 0.15 mm off in best-fit may show 0.4 mm under datum alignment because the datum face itself is tilted — and that tilt is the real problem. Hybrid approaches have their place: best-fit within a functional region, or datum alignment with weighted surfaces where datum features are rough castings.
I use hybrids, but only after asking one question out loud: does this alignment reproduce how the part locates in the car or the aircraft? If the answer is no, whatever colour map follows is decorative. Document the alignment in the report, not just the result, so a reviewer can reproduce your interpretation.
How the colour map lies
A green colour map is a statement about tolerance bands, not about the part. The software paints each point by comparing it against nominal geometry at a chosen deviation scale. Widen the scale from ±0.5 mm to ±2.0 mm and a screaming red part becomes a calm green one. I have sat in reviews where two suppliers argued about the same part, same scanner, same point cloud — different colour scales. Nobody had checked the legend.
The first things I look at on any colour map are the number in the corner, the colour band boundaries, and whether the scale is linear or logarithmic. The second lie is subtler: the map shows magnitude, not direction relative to function. A flange 0.3 mm out on its outer edge, where nothing assembles, paints the same shade as a locating pad 0.3 mm out, where everything assembles. Colour has no idea what the part does.
Weighted colour maps help — narrow bands on functional surfaces, wide bands on non-functional — but you must define the weighting, and it must come from the drawing, not from the operator's instinct at the machine. The third lie is averaging. Scanning software interpolates across gaps, smooths noise, and averages local deviation across a patch. A burr or a local high spot on a locating surface can vanish into a green patch if the patch is large relative to the deviation.
For critical interfaces, always pull cross-sections through the point cloud and read actual numbers. The section reveals form that the colour wash hides.
Probe the datums, scan the rest
Where does scanning genuinely replace a CMM touch probe? Sheet-metal body panels, plastic trim, castings, weldments, and any part where form over large areas matters. A probe hitting forty points on a Class A surface tells you almost nothing; a scanner hitting two million points tells you about waviness, springback and tool wear across the whole skin. For first-article inspection of panels and die-cast housings, scanning is now my default, with the CMM as verification of specific features.
The probe still owns small internal features, deep bores, tight-tolerance holes where optical access is poor, threads, and anything where the scanner's local accuracy is insufficient relative to the tolerance. A scanner quoting volumetric accuracy in the tens of microns is fine for a ±0.5 mm panel tolerance and marginal for a ±0.02 mm bore. Blinded geometry — undercuts, internal channels — simply is not in the point cloud, and reports that quietly skip those features are a recurring audit finding.
Scan-first versus probe-first
Scan-first works for
- Body panels and Class A surfaces
- Castings and weldments
- Full-field form: waviness, springback
- Tolerances at ±0.5 mm and above
Probe still owns
- Datum features and locating holes
- Deep bores, threads, poor optical access
- Tolerances at tens of microns
- Blinded geometry and undercuts
The mature approach in most plants I have run is the hybrid one: scan the part for full-field form, then probe the datum features and critical holes on the same CMM platform or with a scanner-mounted probe. Use the probe results to validate the scan alignment. If the scanner says datum B is clean and the probe says it is 0.08 mm out, trust the probe and investigate the scan — fixturing, temperature, or reference artefact drift are the usual culprits.
Fixture, temperature and surface

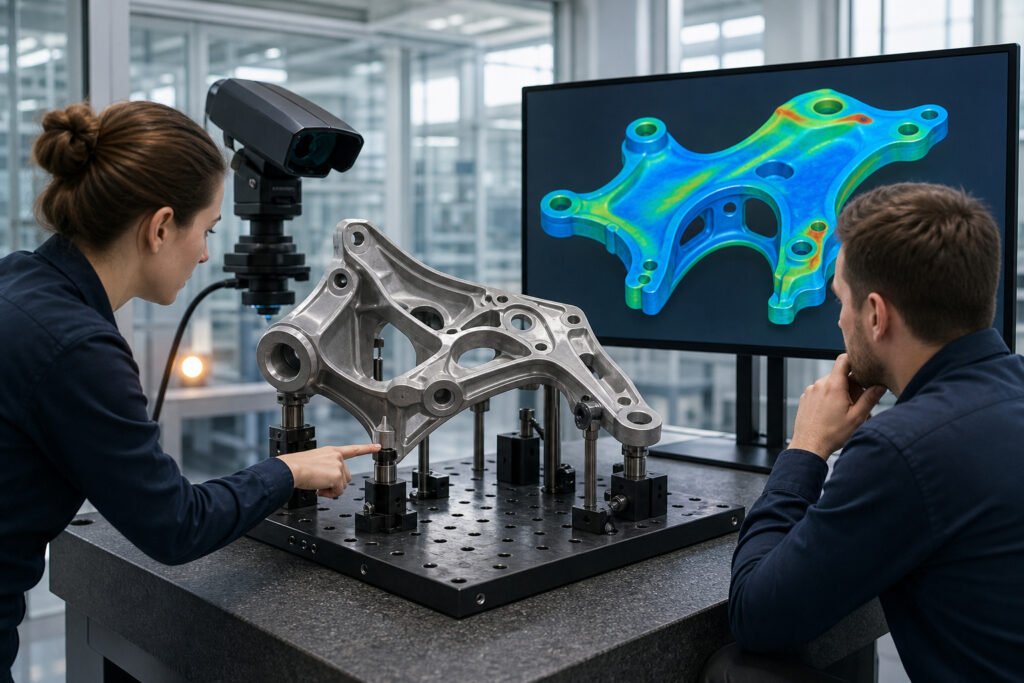

Scanning is a measurement like any other, and it fails in unglamorous ways. Fixturing first: a part clamped in a different state than it sits in the vehicle will show deviation caused by the fixture, not the manufacturing process. Sheet metal is the worst offender — clamp it flat and you hide the warp that will appear at the weld station. Simulate the assembly locating scheme in the fixture, or you are measuring the fixture.
Temperature second. Aluminium parts scanned twenty minutes off the machine carry thermal expansion that can exceed the tolerance you are evaluating. Large castings need soak time on the CMM table; composite and plastic parts need it more, and they also creep under their own weight. Support long thin parts on their assembly locating points, not on convenient flat spots, or the sag lands in your colour map as process deviation.
Surface condition third. Shiny machined faces, dark plastics and translucent materials all challenge optical systems. Spraying developer changes the part — it adds thickness, fills small radii, and can shift small-feature dimensions. I require sprayed and unsprayed results on the same part to be compared during any measurement capability check, and I treat any report generated on a sprayed part with the spray layer uncharacterised as suspect. Operator rotation mid-scan, markers placed on deformed areas, and stale calibration artefacts round out the list of things that quietly poison point clouds.
Making the report defensible
A scan report that stands up to a customer audit contains specific things. The alignment method and the datum features used, named explicitly. The colour scale and its band boundaries, printed legibly on the map. Actual numeric deviations for every dimensioned feature on the drawing — the colour map is supporting evidence, not the record. Cross-sections through critical interfaces.
Include the measurement uncertainty of the scanning system for the relevant length and geometry class. A deviation of 0.06 mm reported against an uncertainty of 0.05 mm is not a result, it is an opinion. This is straight measurement systems analysis: if the uncertainty approaches the tolerance, the colour map cannot resolve pass from fail, no matter how many points it contains.
A deviation of 0.06 mm reported against an uncertainty of 0.05 mm is not a result — it is an opinion.
I also require the negative findings: features not captured, gaps in the point cloud, surfaces excluded from the evaluation and why. A report that shows only green, with no account of what was not measured, is the one I hand back. Traceability of the artefact calibration, scan parameters, software version and operator complete the picture.
A discipline, not a picture
Scanning produces enormous volumes of evidence quickly, which is exactly why the discipline around it must be tighter, not looser, than the touch-probe world it partially replaces. ISO 9001 and IATF 16949 auditors do not accept a colour map as objective evidence; they accept traceable measurements with stated uncertainty and reproducible methodology.
Building a defensible scan evaluation
- 01Define the datum schemeReproduce how the part locates in the assembly, from the drawing
- 02Choose alignment methodDatum-based by default; best-fit only where no datum scheme exists
- 03Set the colour scaleNarrow bands on functional surfaces, stated in the legend
- 04Verify with the probeProbe datums and critical features; investigate any disagreement
- 05Report numbers and gapsNumeric deviations, uncertainty, and what was not captured
The teams that get real value from scanning treat it as a measurement system with a strategy behind it: datum-driven alignment, honest colour scales, hybrid probing where tolerances demand it, and reports a sceptic can reconstruct. Everyone else gets pretty pictures. The difference is not the scanner. It is the engineering that decides what the colours mean.
