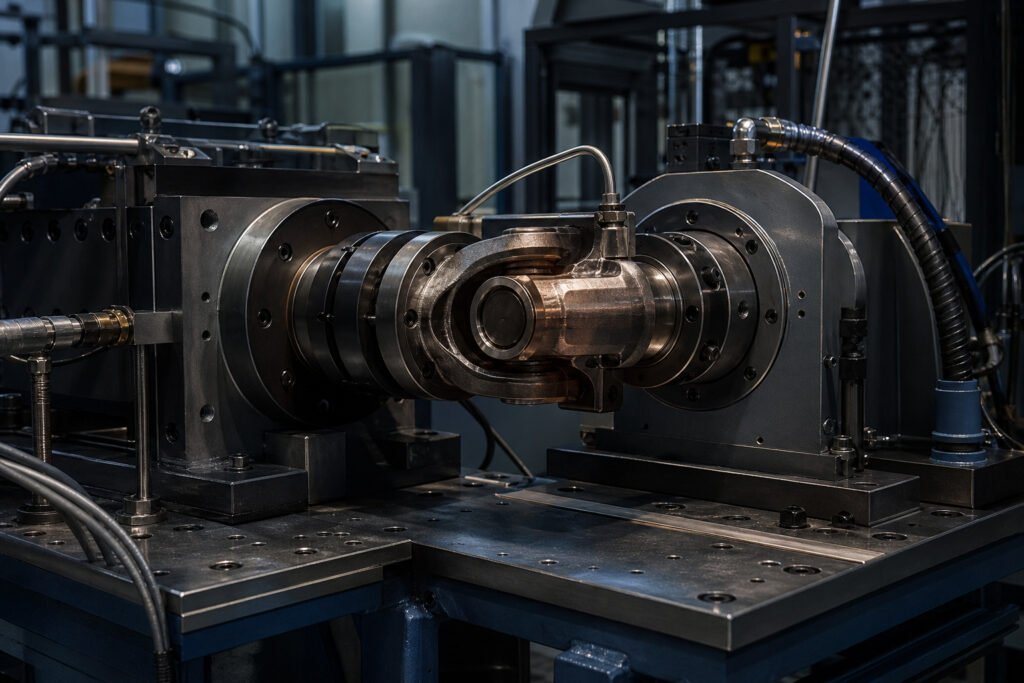

Walk through any assembly plant and you will find calibration certificates laminated and hanging from DC nutrunners like talismans. Operators trust them. Auditors cite them. Joints still loosen in the field anyway, because the certificate confirms only that the tool produced a defined output against a calibration stand under laboratory conditions. That stand shares nothing with the real joint: different stiffness, different friction characteristics, different temperature, different surface finish.
I learned the distinction on a driveline programme early in my career. Every tool on the line held a valid certificate and every audit passed, yet warranty claims for loose fasteners kept arriving months after launch. The certificate proved the transducer was accurate. It said nothing about what happened when that transducer drove a bolt into a cast aluminium housing with threads cut that morning, coated in residual machining fluid, galling against a stamping with entirely different mechanical properties.
A torque verification programme has to close that gap deliberately. The certificate is the starting point, not the conclusion; what matters is the residual condition of the joint after the tool has finished and the assembly has settled into its operating state. Getting there takes five disciplines: knowing the torque-tension physics, auditing residual torque, controlling angle of turn, checking calibration on the floor, and testing relaxation over time.
Torque Is a Proxy for Tension
Torque is a proxy for tension, and most assembly specifications refuse to say so openly. Applying torque to a fastener stretches the bolt to generate clamp load; the torque reading is only the most accessible indicator of that stretch. Thread friction, bearing-surface friction and friction between the clamped parts all sit between the applied torque and the clamp load you actually want. Friction is the most variable quantity in any threaded assembly, which makes torque a blunt instrument for controlling tension.
The arithmetic is unforgiving. On a typical lubricated steel fastener, roughly half the applied torque is consumed under the bearing surface and about forty per cent in the threads, leaving a tenth of the input to do useful work as clamp load. Friction scatter moves that split joint by joint, so an identical torque value can produce markedly different clamp loads in two assemblies that look and measure exactly alike.
Where the applied torque goes
Standards acknowledge this even when drawings do not. ISO 16047 exists precisely to measure the torque-to-clamp-force relationship on real fasteners, and VDI 2230 treats friction coefficients and their scatter as first-class inputs to joint design. The consequence for the production floor is direct: a torque specification controls the input, never the outcome. The verification programme has to measure the outcome.
Residual Torque Audits That Mean Something
Residual torque audits are performed badly more often than well. The typical approach, a technician with a dial wrench twisting fasteners and recording numbers, generates readings that reassure on a report but correlate poorly with joint integrity. Residual torque is the torque required to overcome static friction and restart movement in an already-fastened joint. It is not the torque originally applied, and it never will be. The method has to be engineered around that definition.
Break the fastener loose in the tightening direction, not the loosening direction, because you are measuring the friction holding the joint in its current state, not the friction required to unwind it. Detect the first movement mechanically, not a quarter-turn later, and read the peak at that first movement. That peak is the residual value. Anything measured beyond it describes something else entirely, and that something has no predictive value for whether the joint holds.
Residual torque audit, done correctly
- 01Select the jointCriticality, material pairing and failure history set the cadence
- 02Break in tightening directionRestart movement the way the tool created it
- 03Detect first movementMechanical detection, never a quarter-turn later
- 04Read the peakPeak torque at first movement is the residual value
- 05Record and compareTrack against control limits and investigate excursions
Frequency and sample structure matter as much as technique. Auditing every fastener every shift creates noise without insight: you chase variation that does not matter while missing systematic shifts that do. Build the plan around joint criticality, material pairing and failure history. Audit safety-relevant joints aggressively, and audit known relaxers, such as soft materials, composite interfaces and thermal-expansion mismatches, on a cadence that catches drift before it becomes a warranty claim.
Angle of Turn: Controlling Clamp Load Past Snug
Angle of turn measurement attacks the friction problem directly. Once a fastener is snugged against the joint, further rotation stretches the bolt along a curve fixed by thread pitch and the stiffness of the clamped stack. The angle-tension relationship is far more stable than the torque-tension relationship because it sidesteps friction almost entirely: the bolt behaves as a very stiff spring, and springs obey Hooke's law with admirable consistency.
Implementation fails where snug is defined badly. Snug torque must be established empirically per joint, never assumed from a handbook value. Tighten to snug, mark the angle, continue to target torque and measure the additional rotation, across multiple samples. If the angle past snug falls in a narrow band, the joint is well-behaved and angle control will deliver reliable clamp load. If the angle scatters, the joint has a friction or geometry problem that no tightening strategy resolves.
Modern DC nutrunners with integrated angle encoders make this practical on the floor. Programme the tool to run to snug torque, then switch to angle control for the final tightening, logging both values every cycle. The dual strategy catches individual joints that behave abnormally: a cross-threaded bolt reaches snug torque at an impossible angle, and the tool flags it immediately instead of passing it downstream. That is in-cycle detection, not end-of-line inspection.
Calibration Traceability Without Complacency
Transducer calibration follows established standards, and most plants hold documented traceability to national standards, with hand torque tools recalibrated under ISO 6789. This is necessary and good, and it is where most quality programmes stop thinking. The certificate confirms accuracy at specific torque values, applied under specific conditions, at a point in time. None of those conditions survive contact with the production floor.
Temperature drift moves strain-gauge transducers measurably: a transducer calibrated at laboratory temperature reads differently on a cold line in January than during a July heatwave. Mechanical shock, whether a nutrunner dropped on concrete or a transducer knocked against a fixture, shifts the zero point or introduces non-linearity the certificate never captured. Cable flex on handheld devices adds resistance changes the calibration laboratory never sees.
The certificate tells you the transducer was accurate last month, in a laboratory, at room temperature. The joint lives somewhere else entirely.
A robust programme runs intermediate checks between formal calibrations. These do not replace accredited calibration; they catch drift before it costs anything. A joint simulator, a calibrated test joint with known characteristics, lets operators confirm at shift start that the tool still behaves as expected. Document the readings, set control limits from the transducer specification, and investigate any excursion immediately. The check costs minutes per shift; the alternative is discovering drift during a customer audit or a field-failure investigation.
Joint Relaxation: The Loss You Cannot Tighten Away
Some joints lose clamp load simply by existing. Soft materials creep under compression. Paint coatings flatten under sustained pressure. Gaskets flow. Dissimilar threaded interfaces micro-slip under vibration. Each mechanism reduces residual clamp load over time, and extra torque at assembly does not prevent the loss; it only delays it, sometimes marginally. Treating a relaxation problem as a tightening problem is a reliable way to ship a failing joint.
Aluminium housings with steel fasteners are the classic case. The aluminium creeps under the bolt head and along the thread engagement, accelerated at elevated operating temperature, so a joint torqued correctly on Monday morning may hold only a fraction of its initial clamp load after the thermal cycles the customer's environment supplies. Composite structures relax more dramatically still, as the matrix flows under sustained load and the fibre architecture redistributes stress.
Managing relaxation means measuring it. Build test assemblies with instrumented bolts or load washers and track clamp load across the thermal and vibration profile the product will actually see. The data tells you how much clamp load is lost and how quickly, and only then can you specify assembly torque with residual margin for the design life. Some joints need a retightening procedure after a settling period; others need Belleville washers or flanged fasteners to spread bearing pressure. The solution follows the measurement.
Pulling the Programme Together
A programme that prevents joint failures rests on three pillars in concert. First, the tools produce known output, through traceable calibration and shift-level intermediate checks. Second, the joints achieve the intended clamp load, through residual audits and angle monitoring that reflect real conditions. Third, the time dimension is accounted for, through relaxation testing that predicts the joint's state after months in service, not seconds after the nutrunner clicks off.
Documentation ties the pillars together but substitutes for none of them. I have audited facilities with immaculate torque records and catastrophic joint failures, because the records documented a process that was never under control: the audit form filled perfectly, the readings in specification, and the specification itself wrong for the joint, the material and the operating environment. Good documentation of a bad process produces confident failure.
Train engineers and technicians to think physically about what happens inside the joint. The wrench is not applying torque; it is stretching a bolt to clamp two surfaces, and the torque reading is the most accessible indicator of that stretch. When something fails, the first question is what happened to the clamp load, not whether the tool was calibrated. The certificate answers a narrow question. The joint answers the one that matters.
