I have sat through too many warranty reviews where the failure analysis pointed back to a component operated at or near its datasheet limits, and the only defence offered was that the design "passed verification". It passed because verification tested function, not life. A MOSFET running at ninety-something per cent of its rated drain current will switch perfectly on day one, on day one hundred, and then fail on day four hundred with no warning, taking a module with it. Nothing in the test plan caught it because nothing was wrong with the manufacturing process.

That decision was made at a schematic, by one engineer, on a Tuesday afternoon, with no reviewer applying any standard other than personal judgement. Derating — running components below their rated voltage, current, power, junction temperature or stress ratio — is frequently treated as a design preference, chosen on gut feel, board space or cost. In practice it is one of the few reliability levers that costs nothing at the point of decision and cannot be recovered later. If you run a part at its limits, no amount of inspection, testing or supplier auditing will restore the margin you declined to take.

Reliability is decided at the schematic stage or it is not decided at all. My argument is that derating therefore belongs in the quality management system: written down, with thresholds, deliverables and an enforcement mechanism — not in the head of a senior designer. The rest of this article sets out how to build that system and what it must catch.

What Derating Means in Practice

Derating rules are expressed as maximum allowable stress ratios: the fraction of a rated parameter you may use under worst-case conditions. A typical policy caps electrolytic capacitors at half their rated voltage, MLCCs somewhat higher, resistors at a fraction of rated power, and semiconductors at a fraction of maximum junction temperature. The specific numbers vary by industry and reliability target — a ground-fixed industrial product tolerates tighter margins than an aerospace flight controller or an automotive module mounted next to the engine. What matters is that the numbers exist, that they are documented in a derating standard owned by the quality or reliability function, and that they are versioned like any other controlled document.

The physics is well established. Electrolytic capacitor lifetime roughly halves for every ten-degree rise in core temperature, so a capacitor rated for 105 °C but running at 85 °C with a comfortable voltage margin will outlive one at its ratings by a wide margin. Semiconductors obey similar Arrhenius-type acceleration; electromigration, bond-wire fatigue, dielectric wearout and solder-joint creep all accelerate with temperature and current density. Failure modes are physical processes with activation energies, not mysteries.

Across two decades of failure reviews in automotive and aerospace, when I have traced a field failure to a component running at its stress limit, the root cause was almost always the absence of a rule or the absence of enforcement — never bad luck. Choosing the right reference condition matters as much as choosing the ratio. Derating must be assessed against worst-case operating conditions: maximum ambient or coolant temperature, minimum airflow, maximum load, end-of-life parameter drift, tolerance stack-up on supply rails, and component ageing. A part that looks comfortable at nominal 25 °C ambient may be marginal at maximum specified ambient in an enclosure full of hot neighbours. Thermal simulation and infrared measurement of a prototype give the junction temperatures; the derating check is then arithmetic. The discipline lies in doing it for every part, every time.

Building the Derating Guideline Set

Start by adopting an existing standard rather than inventing one. Published derating guidelines exist across the military, space and automotive worlds, and most organisations adapt one to their product profile rather than writing from scratch. The document should cover, at minimum: capacitors by chemistry (aluminium electrolytic, tantalum, MLCC, film), resistors by technology, discrete semiconductors, ICs, optocouplers, inductors and magnetics, connectors, and crystals or oscillators. For each family, define the parameter to be derated — voltage, ripple current, power, junction temperature, forward current — and the maximum stress ratio under worst-case conditions. Include a short rationale for each entry so future engineers understand why the rule exists and when it might be revisited.

Set thermal margins explicitly. A common structure caps junction temperature for silicon devices well below the absolute maximum, with tighter caps for high-reliability programmes, and sets a similar ceiling for case temperatures relative to the environmental specification. That margin is insurance against modelling error, airflow blockage over the product's life, dust on heatsinks, fan wear, and customers installing the product in hotter conditions than you assumed. Every assumption in the thermal model should be challenged in design review: what is the airflow in a real enclosure with real cabling, what happens if a fan fails or is obstructed, and does the component neighbour another heat source on the board?

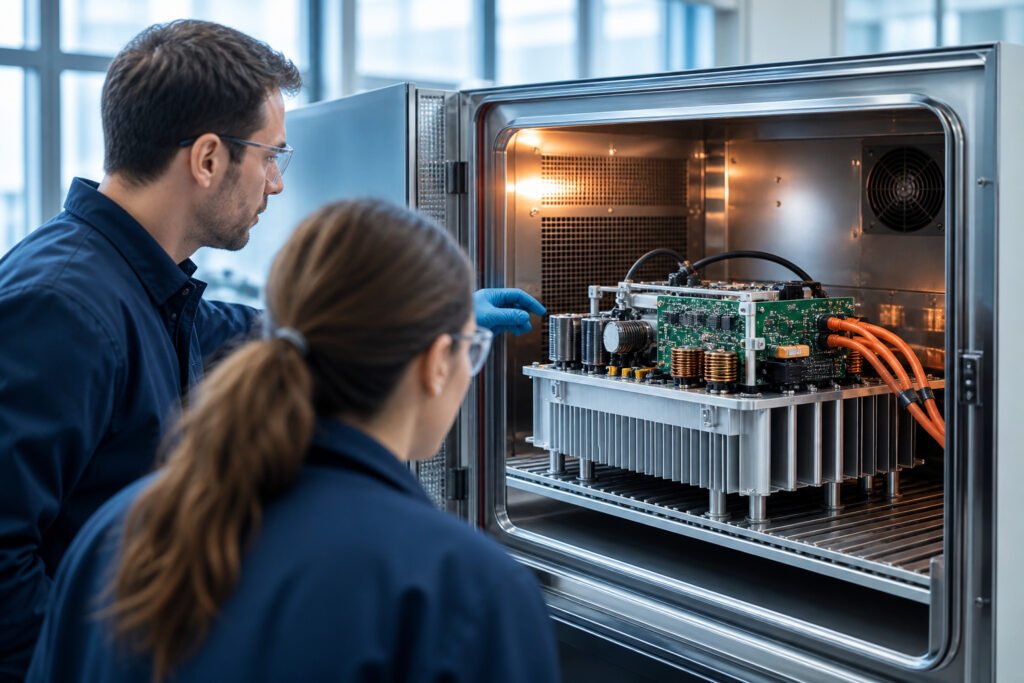

The margin between a component's rating and its worst-case operating point is where product life is actually decided.
The margin between a component's rating and its worst-case operating point is where product life is actually decided.

Classification keeps the workload proportionate. Not every resistor in a logic-level pull-up network deserves the scrutiny of a switching FET in a power stage. A good guideline distinguishes criticality classes — safety-relevant, function-critical, non-critical — and applies stricter ratios to the first two. This focuses review time where failures hurt, and gives the designer a defensible basis for exceptions: a non-critical part at a mildly aggressive ratio becomes a documented decision rather than an oversight. Without classes, derating either becomes a bureaucratic exercise applied blindly or a vague aspiration applied nowhere.

Derating policy maturity

  • Level 1: Personal judgementSenior designers apply unofficial margins; nothing is recorded or repeatable.
  • Level 2: Written guidelineRatios exist but sit in a drawer; compliance depends on goodwill.
  • Level 3: Owned standard with gatesQuality or reliability owns a versioned standard checked at design review.
  • Level 4: Closed loopField failures feed back into rule changes; repeated exceptions trigger limit reviews.
Most organisations sit at level two; the value appears only at three and above, where thresholds are documented and gate-enforced.

Enforcement in Design Review

A guideline nobody enforces is decoration. The mechanism I have found workable is a derating analysis deliverable tied to specific design review gates. The designer, or preferably a reliability engineer working from the schematic and stress tables, produces a component stress analysis listing each part, its critical parameters, worst-case operating values, the applicable derating limit, and the calculated utilisation. Anything over the limit appears on an exception list with justification, mitigation and a named approver. The design review cannot close with open exceptions on critical-class components.

That single procedural rule changes behaviour faster than any training course, because engineers respond to gates they cannot walk through. The review itself should be evidence-based, not impression-based. Reviewers check the stress table against the schematic and bill of materials, sample-verify a handful of calculations, and confirm that the worst-case conditions used are genuinely worst-case. I always ask where the temperature numbers came from — simulation, measurement of a representative build, or wishful thinking. Thermal images of a running prototype at maximum ambient are worth more than any slide deck.

Exceptions deserve a defined pathway rather than blanket prohibition. Occasionally a part must run closer to its rating than the policy allows — board space, availability, cost — and a sensible process lets that happen with eyes open: documented rationale, supporting test or field data, additional screening, or a shortened replacement interval where the product allows it. What the process must never permit is silent exceptions: parts over the limit that nobody flagged because nobody looked. An exception with an owner and a review date is a managed risk; an unlisted overstressed component is a latent field failure with a purchase order attached.

An exception with an owner and a review date is a managed risk; an unlisted overstressed component is a latent field failure with a purchase order attached.

Component Families the Policy Must Catch

Certain components fail this way so predictably that a derating policy exists largely for them. Tantalum capacitors operated near rated voltage are notorious for ignition-style failures, particularly on low-impedance supply rails with surge currents at power-up; aggressive voltage derating, series resistance or a switch to MLCCs addresses it. Aluminium electrolytics dry out — running them hot and near rated voltage shortens life dramatically, and ripple-current heating must be counted in the thermal budget, not just ambient. MLCCs lose capacitance with DC bias, so a part sized by its nominal value may deliver far less in circuit, pushing voltage stress elsewhere.

Semiconductors bring their own list. Power devices cycled between temperature extremes suffer bond-wire fatigue and solder-layer degradation; a part comfortably below its steady-state limit can still fail from thermal cycling if the dissipation swings widely. Optocouplers degrade with forward current and temperature, their current transfer ratio drifting downward over life, so LED current must be derated with enough CTR margin left at end of life for the circuit to still switch. Reverse-biased diodes and FET body diodes need recovery and avalanche margins appropriate to the switching topology. Linear regulators dissipating significant power deserve junction calculations, not faith.

Passives and mechanics close the list. Resistors operated near full rated power run hot enough to raise their own temperature well above ambient, ageing their resistance value, so the derating must account for self-heating. Inductor saturation current, not just RMS current, determines whether the core collapses under load transients. Connector contacts derate with temperature and mating cycles. Crystals and oscillators have drive-level limits; overdriving a crystal causes drift and eventual failure. Each belongs in the guideline with its own entry, because each fails by a distinct mechanism that a generic "use it at 50 per cent" rule would miss.

The derating gate in a design review cycle

  1. 01Stress data captureWorst-case voltages, currents and temperatures from simulation or prototype measurement.
  2. 02Utilisation checkCompare each part against its class-specific limit from the derating standard.
  3. 03Exception listOver-limit parts documented with rationale, mitigation and named approver.
  4. 04Gate decisionReview closes only when critical-class exceptions are resolved or approved.
  5. 05FeedbackField failures and repeated exceptions feed back into rule revisions.
The utilisation calculation is trivial; the discipline is in the loop between exception list and design closure.

Making It Stick Across Programmes

Ownership matters. The derating standard should live with quality or reliability engineering, not with the design department reviewing itself. Design engineering supplies the stress data; an independent function verifies compliance at the gate. When designers know an independent reviewer will sample-check their stress table, the tables get done properly the first time. Train new hardware engineers on the guideline during onboarding, and train reviewers to distinguish genuine worst-case analysis from copy-paste nominal values dressed up as worst case — a pattern anyone who has reviewed these documents will recognise.

Tooling reduces the burden considerably. Stress analysis can be semi-automated from schematic and BOM data, with derating limits held in the component database and utilisation flagged automatically — but the tool must be fed truthful operating conditions, or it merely automates optimistic assumptions. Keep the guideline a living document: when a new failure mode appears in the field or in industry literature, add the rule. When an exception is approved repeatedly for the same reason across programmes, revisit the limit rather than continuing to stamp exceptions. A guideline that never changes is a guideline nobody is reading.

Closing the Loop to the Field

Finally, connect the policy to field feedback. When a warranty return traces to an overstressed component, check whether the derating analysis for that design caught it, missed it, or waved it through — and correct the process accordingly. Did the rule not exist for that component family, was the worst-case condition wrong, or was the exception approved without sufficient evidence? Each answer points to a different fix in the standard, not in the individual engineer.

That loop, from field failure back to schematic-stage rule, is what turns derating from a designer's habit into a genuine quality policy. I have watched it reduce repeat failures of the same component family across successive programmes, and that is the whole point: the cheapest reliability improvement available to any hardware organisation is the one made before the first prototype is ever built. An ISO 9001 or IATF 16949 auditor will accept a derating standard as objective evidence of design control; the warranty department will feel it as fewer returns. Both audiences are right.
